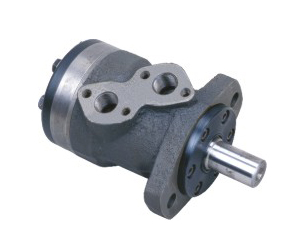

ItemNo: BMR Cycloid hydraulic motors
Featured by reliable perfromance,
high efficiency, low noise and a wide speed range, the
BMR cycloid hydraulic motor is suitable for hydraulic
driving in many fields, such as light industries,
plastics, mining, petroleum, geological, exploration,
engineered and construction machinery.
Technical specification
|
Model |
BMR-80 |
BMR-100 |
BMR-125 |
BMR-160 |
BMR-200 |
BMR-250 |
BMR-320 |
|
Weight (Kg) |
6.9
|
7.0
|
7.2
|
7.5
|
8
|
8.5
|
9
|
|
Capacity (ml/r) |
80.5
|
100
|
125.7
|
159.7
|
200
|
250
|
314.9
|
|
Rated Torque (N.M) |
95
|
119
|
149
|
190
|
190
|
238
|
244
|
|
Rated P (MPa) |
10
|
10
|
10
|
10
|
8
|
8
|
6.3
|
|
Rated Speed (rpm) |
620
|
500
|
400
|
320
|
250
|
200
|
160
|
|
Rated Flow (l/min) |
50
|
50
|
50
|
50
|
50
|
50
|
50
|
|
Rated Power Output (kw) |
6.2
|
6.2
|
6.2
|
6.2
|
5.0
|
5.0
|
4.0
|
|
Extl Length (L) |
143.3
|
146.8
|
151.3
|
157.3
|
164.3
|
173.3
|
185.3
|

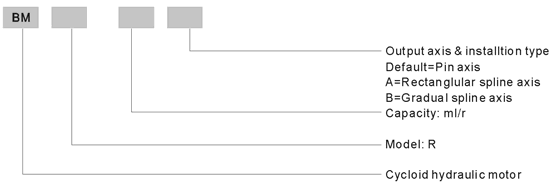

Model description
Mounting dimensions |
|
|
