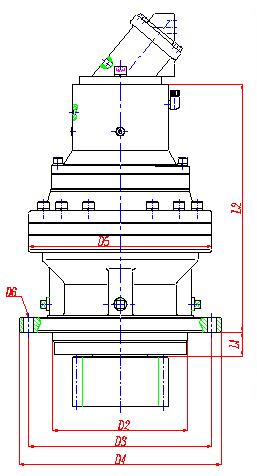

EP706AL, EP707AL SLEW DRIVES
EP709AL, EP711AL SLEW DRIVES
|
Dimension |
Type |
| |
EP706AL |
EP707AL |
EP709AL |
EP711AL |
D2 |
230 |
240 |
280 |
320 |
D3 |
335 |
335 |
385 |
500 |
D4 |
365 |
365 |
420 |
560 |
D5 |
300 |
345 |
345 |
425 |
D6 |
14-ф17 |
14-ф17 |
14-ф22 |
18-ф22 |
L1 |
55 |
60 |
60 |
70 |
L2 |
Size according to motor type
|
Pinion data |
Pinion data according to customer |
|
 |
|
Technical specification
Type |
Max.Output Torque |
Ratio |
Recommend
Hydraulic
Motor |
Max. input
speed |
Brake
torque |
Brake work
pressure |
| |
Excavator
|
Crane
|
(i) |
(rpm) |
(N.m) |
(bar) |
EP706AL |
7700 |
12000 |
13.5—142.5 |
SAE A·B·C·D·E adopt
A2FE 45·56·63
A2FE 80·90
A2FE 107·125 |
3500 |
50-1000 |
20-50 |
EP707AL |
10500 |
165000 |
12.6—257.7 |
EP709AL |
16000 |
26000 |
12.6—257.7 |
EP711AL |
32000 |
45000 |
14.0—223.0 |
2500 |
400-3200 |
Input – output rotate same direction.
Other ratio and other input type can be specially designed.
