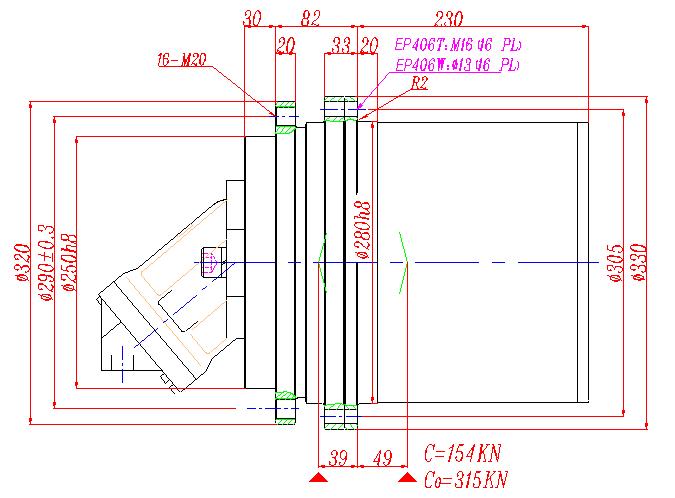

EP406T2 TRACK DRIVES (GFT17T2)
EP406W2 WINCH DRIVES (GFT17W2)

EP406T2 TRACK DRIVES (GFT17T2), EP406W2 WINCH DRIVES (GFT17W2)

Technical specification


Max.Output Torque
(N.m)

Ratio
(i)

Recommend Hydraulic Motor

Max. input speed
(rpm)

Brake torque
(N.m)

Brake work pressure
(bar)

EP406T2

EP406W2

18000

13000

28.3
35
43.2

A2FE45,56,63
A6VE28,55

4000

430

20-50

  1. Input rotation opposite output rotation.
  2. Other ratio and other input type can be specially designed.



Back To Planetary GearBox

EP406T3 TRACK DRIVES (GFT17T3)
EP406W3 WINCH DRIVES (GFT17W3)

EP406T3 TRACK DRIVES (GFT17T3), EP406W3 WINCH DRIVES (GFT17W3)

Technical specification


Max.Output Torque
(N.m)

Ratio
(i)

Recommend Hydraulic Motor

Max. input speed
(rpm)

Brake torque
(N.m)

Brake work pressure
(bar)

EP406T3

EP406W3

18000

13000

63.2
74
82.6
94
110.5
135.8

A2FE28,32
A2FE45,56,63
A6VE28,55

4000

430

20-50

    • Input rotation opposite output rotation.
    • Other ratio and other input type can be specially designed.



    Back To Planetary GearBox
