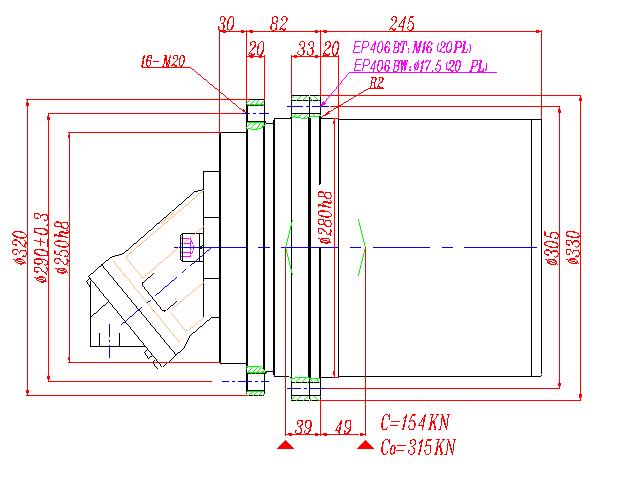

EP406BT3 TRACK DRIVES(GFT24T3)
EP406BW3 WINCH DRIVES(GFT24W3)

EP406BT3 TRACK DRIVES(GFT24T3),EP406BW3 WINCH DRIVES(GFT24W3)

Technical specification


Max.Output Torque
(N.m)

Ratio
(i)

Recommend Hydraulic Motor

Max. input speed
(rpm)

Brake torque
(N.m)

Brake work pressure
(bar)

EP406BT3

EP406BW3

24000

17500

63.2
74
82.6
94
110.5
135.8

A2FE28กค32
A2FE45กค56กค63
A6VE 55

4000

430

20-50

    • Input rotation opposite output rotation.
    • Other ratio and other input type can be specially designed.
